manual of fine impact crusher

Fine Impact Crusher is our latest generation of impact crusher with the international advanced-level quality, which is designed and produced based on absorbing the latest technology of impact crusher in the world. While the impact crusher with three crushing chambers perform well in the fine crushing and superfine crushing operation.It is widely used in granite, basalt, limestone, river gravel, cement clinker, quartz stone, iron ore, bauxite and other minerals.

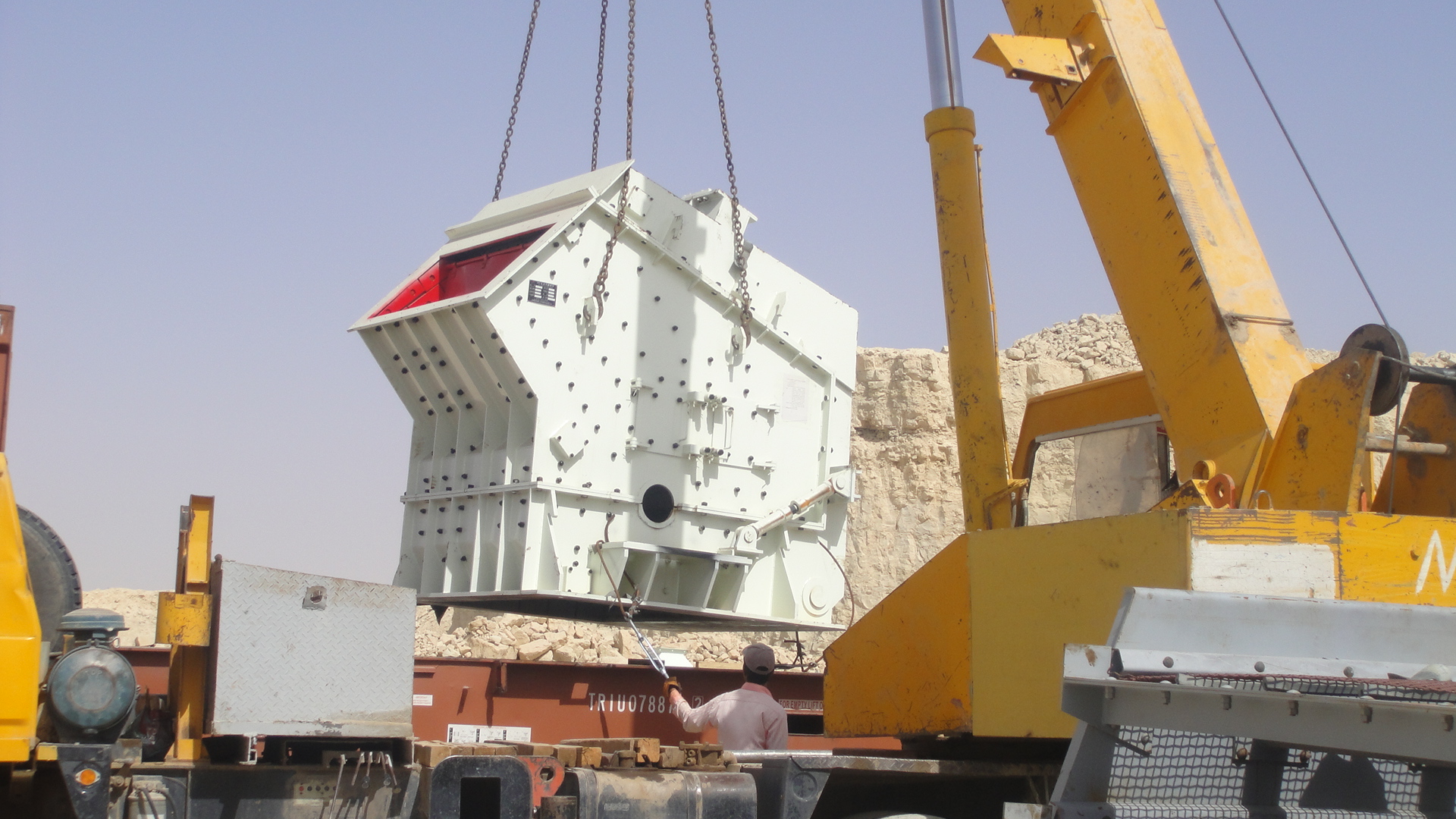

manual of fine impact crusher

Fine Impact Crusher Features

1. Bearing adopts the integrated cast-steel structure, which ensures the perfect match with crusher frame. Meanwhile, it greatly increases the radial intensity of bearing seat;
2. Unique fixing device of blow bar brings higher reliability;
3. Reformative adjusting device decrease the time of machine stop and overhaul;
4. Self-own open-top device can quickly finish the replacement of wearing parts;
5. Larger bearing specification and higher carrying capacity;
6. Rotor analysis ensures stableness and reliability.

Fine Impact Crusher Technial Data

Model Size of rotor (mm) Feed opening (mm) Max. feed size (mm) Capacity (t/h) Power of Motor (kW)
PF1010 Φ1040×1000 510×1040 200 50-90 75
PF1210 Φ1250×1050 465×1155 250 70-130 110
PF1214 Φ1250×1400 465×1485 300 90-180 132
PF1315 Φ1320×1500 700×1540 300 120-250 200
