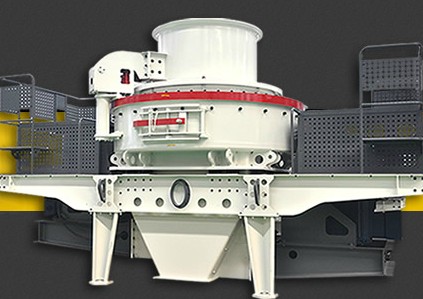

VSI sand crusher is also called VSI sand making machine, is a new generation high effective product which introduces German technology, and owns many independent patents property.Applicable for medium and fine crushing of various ores and rocks, such as iron ore, non-ferrous metal ore, corundum, bauxite, quartz sand, corundum, perlite, basalt materials.
VSI sand crusher technical specification
Model | VSI7611 | VSI8518 | VSI9526 | VSI1140 | |
Capacity (t/h) | Center and Ring feeding | 120-180 | 200-260 | 300-380 | 450-520 |
Center feeding | 60-90 | 100-130 | 150-190 | 225-260 | |
Max Feed Size (mm) | Soft material | <35 | <40 | <45 | <50 |
Hard material | <30 | <35 | <40 | <45 | |
Rotation speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | |
Power for double motor (kW) | 110 | 180 | 264 | 400 | |
Overall Dimension L×W×H (mm) |
4100 ×2250 ×2285 |
4140 ×2280 ×2425 |
4560 ×2450 ×2780 |
5100 ×2690 ×3200 |
|
Weight (t) | 7.8 | 10.3 | 16 | 25.6 | |
Power Source | 380v 50Hz | ||||
Vibrating Sensor | Inspect scope: 0.1-20mm/s adjusted continuously | ||||
Lubrication hydraulic pressure station | Power for double oil pump | 2×0.31kW | |||
Safety | To make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cools; start the motor by heating it in winter. | ||||
Overall dimension LxWxH(mm) |
820x520x1270 | ||||
Power for oil box heater | 2 kW |
Other sand crusehr model: PCL sand crusher, VSI5X sand crusher
