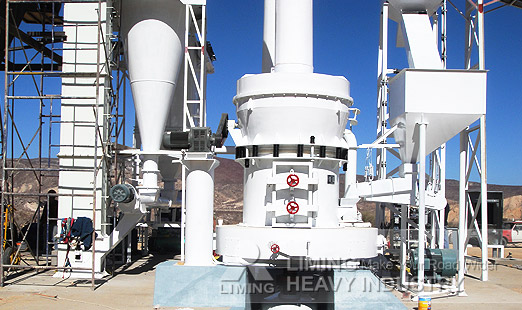

TGM 160 trapezium grinding mills design and dimensions

TGM 160 trapezium mill is the latest grinding mill. It is researched and designed by our experts basing on long term experiences of mill research and development, and according to numbers of customers’ using requirements and suggestions home and aboard. It has got CE and National Patent Certificate. It adopts our patented technologies, like trapezium working surface, flexible connection, roller linked pressure boost, etc.

TGM 160 trapezium grinding mills design and dimensions

TGM 160 trapezium grinding mills  mainly consist of mainframe, speed reducer, powder separator, blower, bag filter, pipes, powder collector, motor, etc. The peripheral equipments are jaw crusher, bucket elevator, feeder, hopper, electric control panel, etc.

TGM 160 trapezium grinding mill technical data:

Roller piece: 6
Roller Diameter×Height(mm): Ф440×270
Ring Inner Diameter×Height(mm): Ф1600×270
Speed Of Main frame (r/min): 1480
Max. Input Size (mm): 35
Product Size (mm): 1.6~0.045 fineness can reach to 0.038
Capacity (t/h): 13~22
Overall Dimension (mm): 12550×5700×8355
Weight (t): 35
