We are as one of the leaders in crushing technology and manufacturer in the world, and offers a range of standard rock crushers to meet your quarry or mine site needs. Our employs experts who partner with you to asses your crushing needs, and to recommend the rock crusher solution guaranteed to meet your production goals.

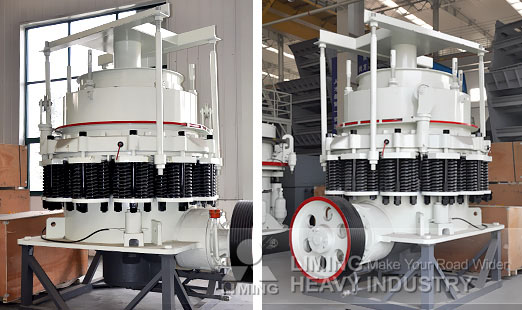

3 ft standard rock crusher features:
1. Large crusher feed opening yields high performance.
2. Easily replaceable frame liner, frame-arm liner and countershaft box liners offer decades of protection.
3. Easily replaceable frame liner, frame-arm liner and countershaft box liners offer decades of protection.
4. Safe chamber clearing with push button controls, approximately 6 inches of travel.
3 ft standard rock crusher technical data:
Model | Dia. mm (feet) | Cavity | Feed Opening | Outlet Setting (mm) | Shaft Speed (r/min) | Power (kw) | Capacity (t/h) | Weight (t) | Dimension (mm) | |
Closing Side (mm) | Open Side (mm) | |||||||||
CSB75 | 900 (3′) | Fine | 83 | 102 | 9-22 | 580 | 75 | 45-91 | 15 | 2821×1880
×2164 |
Coarse | 159 | 175 | 13-38 | 59-163 | ||||||
CSB160 | 1295 (4 1/4′) | Fine | 109 | 137 | 13-31 | 485 | 185 | 109-181 | 27 | 2800×2342
×2668 |
Medium | 188 | 210 | 16-38 | 132-253 | ||||||
Coarse | 216 | 241 | 19-51 | 172-349 | ||||||
CSB240 | 1650 (5 1/2′) | Fine | 188 | 209 | 16-38 | 485 | 240 | 181-327 | 55 | 3911×2870
×3771 |
Medium | 213 | 241 | 22-51 | 258-417 | ||||||
Coarse | 241 | 268 | 25-64 | 299-635 | ||||||
CSB315 | 2134 (7′) | Fine | 253 | 278 | 19-38 | 435 | 315 | 381-726 | 110 | 4613×3251
×4732 |
Medium | 303 | 334 | 25-51 | 608-998 | ||||||
Coarse | 334 | 369 | 31-64 | 789-1270 |
