Wheeled Jaw Crusher

Wheeled Jaw Crusher Introduction

Wheeled Jaw Crusher concept is fully adaptable to all mobile crushing needs, it set up a new range of business opportunities for contractors, quarry operators, recycling and mining applications. It can eliminate the obstacles of the crushing places and circumstances, and offer the high efficient and low cost project plants for the client. To the client, it is the best choice.

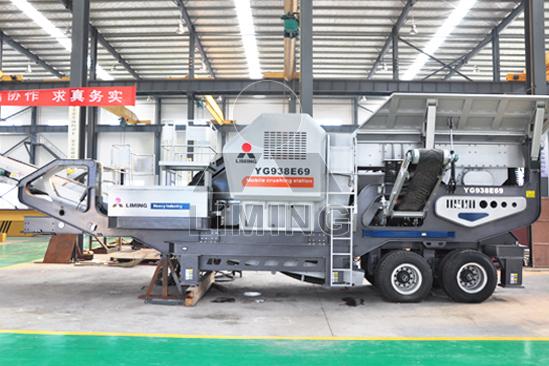

Wheeled Jaw Crusher

Wheeled Jaw Crusher Featuer

1. Incorporated the feeder and vibrating screen into the crusher
2. Everything on board: crusher, feeders, screens, belts and power installations
3. quick road transportation thanks to king pin arrangement
4. Installation support legs on the track,quick to set-up
5. Electric motor and control cabinet are on the same truck

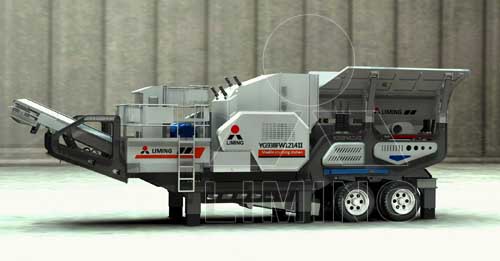

Wheeled Jaw Crusher

Wheeled Jaw Crusher Application

Wheeled Jaw Crusher has been widely applied in mining, metallurgical, construction, road and railway building, water conservancy and chemistry etc. It is mainly applied in the primary crushing in which the compressive strength of original material is under 320Mpa.

Wheeled Jaw Crusher Technical Data

Technical Data\Model YG938E69 YG1142E710 YG1349E912 YG1349EW86
Transportation size(mm) 11900

×2550

×3650

13500

×2550

×4300

15200

×2950

×4450

14600

×2750

×4350





Weight(t) 35 52 80 59
Tire Configuration Dualaxial Triaxial Triaxial Triaxial
Jaw Crusher PE600×900 PE750×1060 PE900×1200 PEW860
The Maximum Feeding Size(mm) 480 630 750 730
Discharge Opening Size(mm) 65~160 80~140 100~200 75~225
Capacity(t/h) 90~180 110~320 220~450
Vibrating Feeder GZD960

×3800

GZD1100

×4200

GZD1300

×4900

GZD1300

×4900





Main Belt Conveyor B800×8.5M B1000×9M B1200×9.5M B1200×9.5M
Side Belt Conveyor (optional) B450×3M B500×3.5M B650×4M B650×4M
Electric control standard control box

+ control panel

control box

+ control panel

control box

+ control panel

control box

+ control panel

optional Control box

+ LCD

Control box

+ LCD

Control box

+ LCD

Control box

+ LCD

Hydraulic leg standard 4 4 4 4
optional 2 2 2 2
Hydraulic cylinder standard 4 4 4 4
optional 5 5 5 5
Genset (optional)(Kw) 180 250 250 270
Iron Separator (optional) (Kw) RCYD(C)-8 RCYD(C)-10 RCYD(C)-12 RCYD(C)-12
