Small jaw crusher is an innovative crushing concept, which is designed for flexible applications. It is a popular crushing plant in mining industry; it has optimized performance of big crushing ratio, low energy consumption, low jaw plate wear and easy operation. It is a popular primary crushing plant for construction, building material, railway, highway, metallurgy and many other industries.

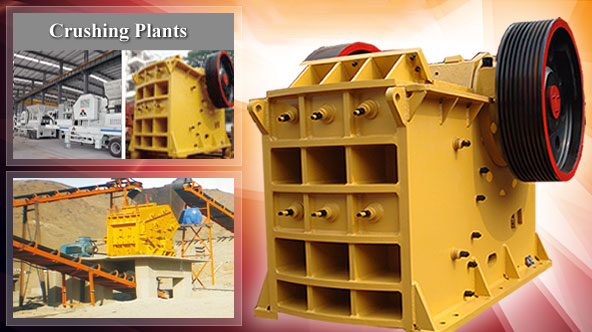

Small jaw crusher structure
We can supply you small jaw crusher with fabricated steel frame, spherical roller bearings and cartridge type bearing mountings, cast swinging jaw hub guard, hydraulic locking/unlocking adjusting and wedgelock mechanism, oil lubrication system, crusher jaws parts etc.
New small jaw crusher technical data
| Model | Max. Feeding Size (mm) | Adjustable Discharge opening (mm) | Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) |
Weight (t) |
| PE250×400 | 200 | 20-60 | 5-20 | 15 | 1150×1275 ×1240 |
2.8 |
| PE250x1000 | 210 | 15-50 | 15-50 | 30 | 2790×2670 x1380 |
6.5 |
| PE400×600 | 350 | 40-100 | 15-60 | 30 | 1700×1732 ×1653 |
6.5 |
| PE500×750 | 425 | 50-100 | 50-100 | 55 | 2035×1921 ×2000 |
10.3 |
| PE600×900 | 500 | 65-160 | 60-130 | 75 | 2290×2206 ×2370 |
15.5 |
| PE750×1060 | 630 | 80-140 | 110-250 | 110 | 2620×2302 ×3110 |
26.7 |
| PE900×1200 | 750 | 100-200 | 160-380 | 130 | 3789×2826 ×3025 |
51 |
| PE1000×1200 | 850 | 200-300 | 315-550 | 130 | 3335×3182 ×3025 |
56 |
| PE1200×1500 | 1020 | 150-350 | 400-800 | 200 | 4200×3750 ×3820 |
88 |
Spodumene: According to the hard rock crushing process, the crushed product is generally 5-40mm, combined with different design requirements of customers, two-end or three-stage crushing, high-grade crushed products (above 4-5%) can be directly used in the metallurgical process to produce lithium carbonate Or lithium hydroxide, the particle size of the finished product is generally around 20-40mm; low-grade generally requires ball mill grinding and separation, and the particle size of the finished product is generally around 5-20mm;
