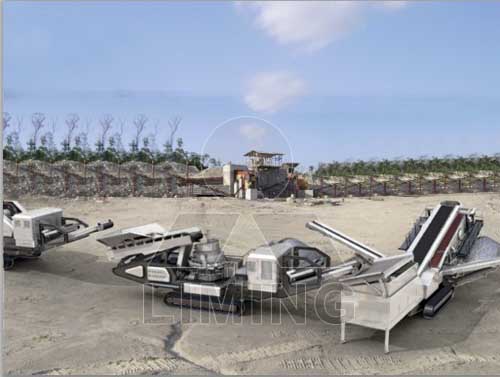

Tracked Jaw Crusher and Wheeled Jaw Crusher are new jaw crusher products in 2012 absorbing world advanced technology. On the basis of our present traditional jaw crusher, we adopt national leading manufacturing theory. Compared with traditional jaw crusher, it has larger capacity and crushing ratio, bigger range of input size, evener product size, and easier maintenance.
Specification data of Tracked Jaw Crusher:
Specifications: | |||||
Technical Data\Model | YG935E69L | YG1138E71L | |||
Vibrating Feeder | GZD-960×3500 | GZD-1100×3800 | |||
Crusher | PE600×900 | PE750×1060 | |||
Main Belt Conveyor | B800×8.5M | B1000×9M | |||
Discharging Height of Main Belt Conveyor (mm) | 3200 | 3500 | |||
Side-opening Belt Conveyor (Optional) | B450×3M | B500×3.5M | |||
Discharging Height of Side-opening Belt Conveyor (mm) | 2800 | 3100 | |||
Power of Genset (kW) | 180 | 200 | |||
Transportation Length (mm) | 11900 | 13300 | |||
Transportation Width (mm) | 3100 | 3100 | |||
Transportation Height (mm) | 3650 | 4500 | |||
Transportation Weight (t) | 43.5 | 59 | |||
Working Length (mm) | 12100 | 13500 | |||
Working Width (mm) | 3100 | 3100 | |||
Working Height (mm) | 4100 | 5100 |
Specification data of Wheeled Jaw Crusher :
Technical Data\Model | YG938E69 | YG1142E710 | YG1349E912 | YG1349EW86 | ||
Transportation size(mm) | 11900×2550×3650 | 13500×2550×4300 | 15200×2950×4450 | 14600×2750×4350 | ||
Weight(t) | 35 | 52 | 80 | 59 | ||
Tire Configuration | Dualaxial | Triaxial | Triaxial | Triaxial | ||
Jaw Crusher | PE600×900 | PE750×1060 | PE900×1200 | PEW860 | ||
The Maximum Feeding Size(mm) | 480 | 630 | 750 | 730 | ||
Discharge Opening Size(mm) | 65~160 | 80~140 | 100~200 | 75~225 | ||
Capacity(t/h) | 90~180 | 110~320 | 220~450 | 150~500 | ||
Vibrating Feeder | GZD960×3800 | GZD1100×4200 | GZD1300×4900 | GZD1300×4900 | ||
Main Belt Conveyor | B800×8.5M | B1000×9M | B1200×9.5M | B1200×9.5M | ||
Side Belt Conveyor (optional) | B450×3M | B500×3.5M | B650×4M | B650×4M | ||
Electric control | standard | control box+ control panel | control box+ control panel | control box+ control panel | control box+ control panel | |
optional | Control box+ LCD | Control box+ LCD | Control box+ LCD | Control box+ LCD | ||
Hydraulic leg | standard | 4 | 4 | 4 | 4 | |
optional | 2 | 2 | 2 | 2 | ||
Hydraulic cylinder | standard | 4 | 4 | 4 | 4 | |
optional | 5 | 5 | 5 | 5 | ||
Genset (optional)(Kw) | 180 | 250 | 250 | 270 | ||
Iron Separator (optional) (Kw) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-12 | RCYD(C)-12 |
