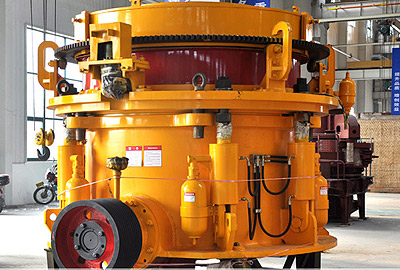

Hydraulic Cone Crusher is manufactured and designed through absorbing the latest world advanced technology and gets to be world advanced level. It is widely used in the fields of metallurgy, construction, hydroelectric project, transport, chemical industries and building materials for crushing all sorts of hard and above medium hard ores and rocks.
Working principle of Hydraulic cone crusher
The crushing principle of Hydraulic Cone Crusher is finished between fixed cone plate and movable cone plate. The cone crusher’s motor drives the horizontal axis of the cone crusher through triangle belt and pulley, the horizontal axis drive the eccentric shaft bush to rotate through gear transmission. The eccentric shaft drives the main shaft to make the movable cone plate swing at a regulated track from time to time, the materials are crushed due to constant pressed and crooked in the crushing cavity. The finished products are discharged from the discharging open.
Structure of Hydraulic cone crusher
Technical data of Hydraulic cone crusher
| Type | Cavity (coarse/fine) | Outlet adjustment range (mm) | Feed size (mm) | Capacity (t/h) | Power (kW) | Weight (t) | movable cone diameter (mm) |
| HPC-160 | C | 12-20 | 135 | 120-240 | 160 | 13 | 950 |
| F | 5-20 | 76 | 55-180 | ||||
| HPC-220 | C | 15-38 | 185 | 150-430 | 220 | 18.5 | 1160 |
| F | 6-25 | 110 | 90-260 | ||||
| HPC-315 | C | 19-45 | 265 | 190-610 | 315 | 26 | 1400 |
| F | 9-30 | 150 | 108-320 | ||||
| HPC-400 | C | 25-50 | 320 | 230-700 | 400 | 33 | 1500 |
Spodumene: According to the hard rock crushing process, the crushed product is generally 5-40mm, combined with different design requirements of customers, two-end or three-stage crushing, high-grade crushed products (above 4-5%) can be directly used in the metallurgical process to produce lithium carbonate Or lithium hydroxide, the particle size of the finished product is generally around 20-40mm; low-grade generally requires ball mill grinding and separation, and the particle size of the finished product is generally around 5-20mm;
