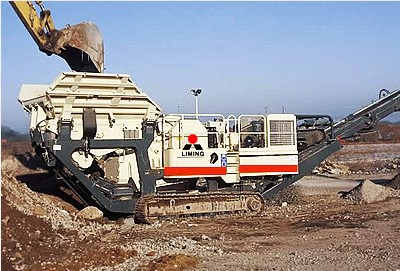

Tracked jaw crusher

Tracked jaw crusher Introduction

Tracked jaw crusher is a newly designed rock crushing equipment of our company. Mobile Jaw Crusher Crushing Plant largely expands the coarse crushing area. This Mobile Crusher’s aim of designing concept is eliminating working area and providing with customers high efficiency, low cost operating hardware facilities.

Tracked jaw crusher

Tracked jaw crusher Feature

Tracked jaw crusher designed for rock and recycle applications, Fast Tracked jaw crusher offer the ultimate in portability. You simply drive off of a lowboy trailer and immediately begin crushing up to 400 tph. Features like a large heavy duty hopper, hand held remote controls and a sturdy Vanguard Jaw Crusher ensure you ease of operation coupled with reliable production.

Tracked jaw crusher

Tracked jaw crusher wearing parts

There are movable jaw, jaw plate, edge plate, toggle plate spring seat, adjusting seat and so on. Our company supports excellent wearing parts. Mobile Jaw Crusher is adopted the world advanced technology, it can meet users requirements.

Tracked jaw crusher Technical Data

Specifications:
Technical Data\Model YG935E69L YG1138E71L
Vibrating Feeder GZD-960×3500 GZD-1100×3800
Crusher PE600×900 PE750×1060
Main Belt Conveyor B800×8.5M B1000×9M
Discharging Height of Main Belt Conveyor (mm) 3200 3500
Side-opening Belt Conveyor (Optional) B450×3M B500×3.5M
Discharging Height of Side-opening Belt Conveyor (mm) 2800 3100
Power of Genset (kW) 180 200
Transportation Length (mm) 11900 13300
Transportation Width (mm) 3100 3100
Transportation Height (mm) 3650 4500
Transportation Weight (t) 43.5 59
Working Length (mm) 12100 13500
Working Width (mm) 3100 3100
Working Height (mm) 4100 5100
