Jaw crusher is widely used in mining, building materials, chemical industry, metallurgy and so on. The Jaw Crusher is suitable for primary and secondary crushing all kinds of minerals and rocks with compressive strength less than 320 MPa. The capacity of our jaw crusher is 5-1100 tonne per hour.
Operating principle of jaw crusher
This machine is driven by motor. Through the motor’s wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and cheek plate can be crushed and discharged through discharging opening. The jaw crushing plant also include vibrating feeder, vibrating screen, belt conveyor etc.

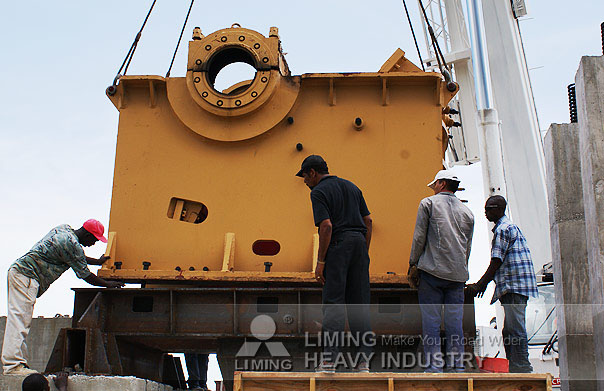

Type of jaw crusher 65 tonne per hour
| Model | Max. Feeding Size (mm) | Adjustable Discharge opening (mm) | Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) | Weight (t) |
| PE250×400 | 200 | 20-60 | 5-20 | 15 | 1150×1275×1240 | 2.8 |
| PE250x1000 | 210 | 15-50 | 15-50 | 30 | 2790x2670x1380 | 6.5 |
| PE400×600 | 350 | 40-100 | 15-60 | 30 | 1700×1732×1653 | 6.5 |
| PE500×750 | 425 | 50-100 | 50-100 | 55 | 2035×1921×2000 | 10.3 |
Spodumene: According to the hard rock crushing process, the crushed product is generally 5-40mm, combined with different design requirements of customers, two-end or three-stage crushing, high-grade crushed products (above 4-5%) can be directly used in the metallurgical process to produce lithium carbonate Or lithium hydroxide, the particle size of the finished product is generally around 20-40mm; low-grade generally requires ball mill grinding and separation, and the particle size of the finished product is generally around 5-20mm;
