Type: Metal ore beneficiation equipment
Input Size:
Processed Materials:
Black ores, nonferrous mines, nonmetal mines..
Applications:
Cyclone system is widely used in grinding, slurry dewatering, removing mud, micro-fine material classification, as well as tailings filling, dams, recycling and other processes.

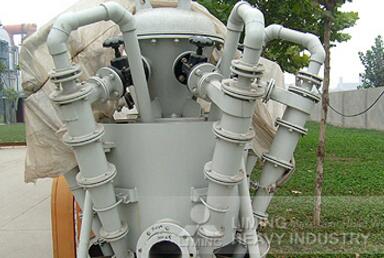

Cyclone product instructions:
The cyclone is widely used inc losed-circuit grinding system of Chinese black, colored, non-metallic mines;slurry dewatering, removing mud, micro-fine material grading,and tailings filling,dams,recycling and other process.As the cyclone is high classification efficiency, simple structure, large capacity, small footprint, etc., so it is widely favored by users.
Cyclone product features:
1. High classification efficiency
2. Simple structure
3. Large throughput
4. Small occupied area
Cyclone product working principle:
When pulp uses sand pump (or height) at a certain pressure (typically 0.5 to 2.5 kg / cm) and flow rate (about 5 to 12 m / sec) goes along the tangential direction from the pipeline into cylinder,pulp forms a very high speed of rotation along the cylinder wall,and generates a large centrifugal force.Under the action of centrifugal force and gravity,, Coarser, heavier particles are thrown to the walls of the mine,along a spiral trajectory making downward movement,and discharged from the lower part of the cone discharge opening,the fine mineral particles form the spiral rising pulp flow with water in the center of the cone,discharged through the overflow pipe.
Cyclone product technology specitions:
Cyclone group specification
Model Specification | Diameter (mm) | Cone angle | Classifying particle size (mm) | Processing capacity (m3/h) | Overflow opening Diameter (mm) | opening area (m㎡) | Sediment opening diameter (mm) | Weight (kg) |
FXK150×4 | 150 | 20 | 35-75 | 30-60 | 25、32、40、50 | 22×22 | 16、24、32 | 1680 |
FXK150×8 | 150 | 20 | 35-75 | 60-120 | 25、32、40、50 | 22×22 | 16、24、32 | 2236 |
FXK150×12 | 150 | 20 | 35-75 | 90-180 | 25、32、40、50 | 22×22 | 16、24、32 | 3074 |
FXK300×4 | 300 | 20 | 45-105 | 148-172 | 65、75 | 47×60 | 35、40 | 2530 |
FXK300×6 | 300 | 20 | 45-105 | 222-258 | 65、75 | 47×60 | 35、40 | 3477 |
FXK350×4 | 350 | 20 | 50-110 | 296-360 | 95、105、115 | 80×65 | 60、70、80 | 3550 |
FXK350×6 | 350 | 20 | 50-110 | 384-440 | 95、105、115 | 80×65 | 60、70、80 | 5597 |
FXK350×12 | 350 | 20 | 50-110 | 888-1080 | 140、160、180 | 110×120 | 60、70、80 | 10537 |
FXK500×4 | 500 | 20 | 60-120 | 680-880 | 140、160、180 | 110×120 | 70、90、110 | 6645 |
FXK500×6 | 500 | 20 | 60-120 | 1020-1320 | 140、160、180 | 110×120 | 70、90、110 | 8870 |
FXK660×6 | 660 | 20 | 70-150 | 1830-3150 | 203、254、305 | 225×115 | 152 | 1805 |
