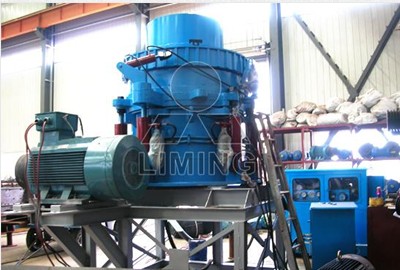

Gyratory cone crusher is widely used in metallurgy industry, building materials industry, road building, chemical industry and silicate industry, for crushing the middle and above average hardness of various minerals and rocks Mining & Processing, the machine has broken force, high efficiency, processing high, action low cost, easy adjustment and economic characteristics.
gyratory cone crusher technical specification
Type | Cavity (coarse /fine) |
Outlet adjustment range (mm) | Feed size (mm) | Capacity (t/h) | Power (kW) | Weight (t) | movable cone diameter (mm) |
HPC-160 | C | 12-20 | 135 | 120-240 | 160 | 13 | 950 |
F | 5-20 | 76 | 55-180 | ||||
HPC-220 | C | 15-38 | 185 | 150-430 | 220 | 18.5 | 1160 |
F | 6-25 | 110 | 90-260 | ||||
HPC-315 | C | 19-45 | 265 | 190-610 | 315 | 26 | 1400 |
F | 9-30 | 150 | 108-320 | ||||
HPC-400 | C | 25-50 | 320 | 230-700 | 400 | 33 | 1500 |
