manual of hp 700 cone crusher in South Africa

HP cone crusher is the globally advanced and high-performance cone crusher developed by absorbing the latest Germanic technology. From limestone to taconite, from ballast production to manufactured sand, and from small portable plants, HP cone crushers provide unbeatable performance in secondary, tertiary, and quaternary applications.

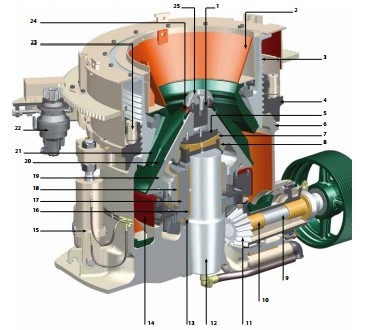

1 – Locking bolt   2 – Feed bowl hopper   3 – Bowl   4 – Adjustment ring
5 – Head bowl    6 – Main frame   7 – Socket liner   8 – Upper head bushing
9 – Countershaft    10 – Countershaft bushings   11 – Gear and pinion
12 – Main shaft   13 – Eccentric thrust bearing   14 – Counterweight guard
15 – Tramp Release assembly   16 – Eccentric bushing  17 – Eccentric
18 – Lower head bushing   19 – Head    20 – Mantle   21 – Bowl liner
22 – Hydraulic adjustment motor   23 – Clamping cylinders
24 – Torch ring     25 – Cone feed plate

HP  cone crusher has a better performance than traditional crushers:

1. High efficiency: comparing with the old spring cone crusher, efficiency has been increased by 5%-15%.
2. Big capacity: this machine is a perfect combination of crushing stroke, crushing speed and crushing chamber, which makes the capacity 35%-60% more than that of the old spring cone crusher while size of crushing cone is the same.
3. More stable performance: while there are materials not suitable for crushing entering into the machine, the protection device will start automatically to relieve it and reset immediately.
4. The multi-split hydraulic lubrication control system will ensure a double protection to draft lubrication and a over-load protection.
