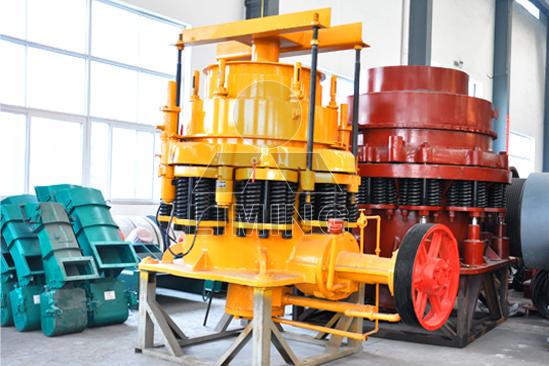

PY series cone crusher is suitable for crushing various of mid-hard and above mid-hard ores and rocks, such as iron ores, copper ores, limestone, quartz, granite, gritstone, etc. It is widely applied in metallurgical, construction, road building, chemical and phosphatic industry.
The type of crushing chamber depends upon size of feeding and fineness of crushed product. The standard type (PYB) is applied to medium crushing, the medium type (PYZ) is applied to medium or fine crushing and the short head type (PYD) is applied to fine crushing.
New type of Cone Crusher Technical Data
Type | Max. input (mm) | Adjusting range of output (mm) | Capacity (t/h) | Motor power (kW) | weight (t) | Overall dimensions (L×W×H)(mm) | |
PYB | 600 | 65 | 12-25 | 12-25 | 30 | 5 | 2800×1300 ×1700 |
PYD | 35 | 3-15 | 5-23 | 5.5 | |||
PYB | 900 | 115 | 15-50 | 50-90 | 55 | 10.2 | 3050×1640 ×2350 |
PYZ | 60 | 5-20 | 20-65 | 10.2 | |||
PYD | 40 | 3-13 | 15-50 | 10.3 | |||
PYB | 1200 | 145 | 20-50 | 110-200 | 110 | 24.7 | 4152×2300 ×2980 |
PYZ | 100 | 8-26 | 50-150 | 25 | |||
PYD | 50 | 3-15 | 18-105 | 25.6 |
