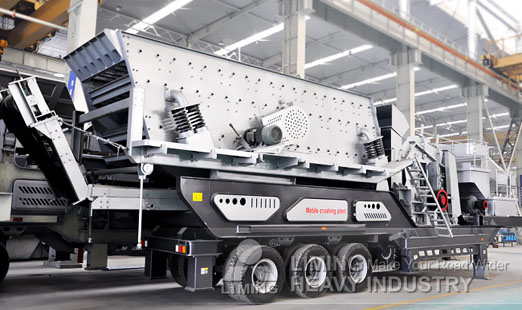

Y3S2160 F1315 is a new type mobile impact crushing plant with vibrating screen. It is designed for larger scale operations where high throughput is required. It incorporates the F1315 impact crusher which is suitable for a wide variety of applications in demolition, recycling and quarrying. It is available with an optional double deck hanging screen system, which will allow customers an even greater return on investment through the facility to produce accurately sized products for immediate use.
All mobile impact crushing and screening units are built to the highest quality and designed for ease of mobility, quick set-up time and transportation. Many new features in the latest range of equipment have been introduced to simplify operation and maintenance and ultimately maximize uptime. With the introduction of the latest emissions-compliant engines, the machines are now as fuelefficient and environmentally focused as they are productive, reliable and versatile, whilst also minimizing cost of ownership.
impact crushing and screening plant design data
Technical Data\Model | Y3S1848 F1210 | Y3S1860 F1214 | Y3S2160 F1315 | Y3S1848 FW210Ⅲ | Y3S1860 FW214Ⅲ | Y3S2160 FW315Ⅲ | |
Transportation size(mm) | 12000
×2800 ×4350 |
13400
×2820 ×4350 |
13400
×3100 ×4350 |
12000
×2800 ×4350 |
13400
×2820 ×4350 |
13400
×3100 ×4350 |
|
Weight(t) | 34 | 40 | 47 | 33 | 40 | 48 | |
The Maximum feeding size (mm) | 250 | 300 | 350 | 250 | 300 | 350 | |
Capacity (t/h) | 70-130 | 90-180 | 120-250 | 70-120 | 90-170 | 180-270 | |
Tire Configuration | Dualaxial | Triaxial | Triaxial | Dualaxial | Triaxial | Triaxial | |
Impact Crusher | PF-1210 | PF-1214 | PF-1315 | PFW-1210Ⅲ | PFW-1214Ⅲ | PFW-1315Ⅲ | |
Belt Conveyor Under Vibrating Screen | B800×6M | B800×8M | B1000×8M | B800×7M | B800×8M | B1000×8M | |
Vibrating Screen | 3YZS1848 | 3YZS1860 | 3YZS2160 | 3YZS1848 | 3YZS1860 | 3YZS2160 | |
Electric control | standard | control box
+ control panel |
control box
+ control panel |
control box
+ control panel |
control box
+ control panel |
control box
+ control panel |
control box
+ control panel |
optional | Control box
+ LCD |
Control box
+ LCD |
Control box
+ LCD |
Control box
+ LCD |
Control box
+ LCD |
Control box
+ LCD |
|
Hydraulic leg | standard | 4 | 4 | 4 | 4 | 4 | 4 |
optional | 2 | 2 | 2 | 2 | 2 | 2 | |
Hydraulic cyclinder | standard | 0 | 0 | 0 | 0 | 0 | 0 |
optional | 2 | 2 | 2 | 2 | 2 | 2 | |
Genset(optional)(kw) | 180 | 270 | 380 | 250 | 300 | 440 |
