220tph river pebble- sand making production line

220tph river pebble-making production line
Feeding granularity: no more than 600mm out of the grain size: 0-5mm, 10-20mm, 20-31.5 mm

Application: concrete mixing station, highway construction, real estate development

Equipment configuration: GZD1100 x 4200 vibration feeding machine, PE750 x 1060 jaw crusher, HPT300 multi-cylinder hydraulic cone crusher, 5X1145 shaker, 3YKN2675 vibrating screen, 3YZS2460 shaker, two XSD3016 sand washer

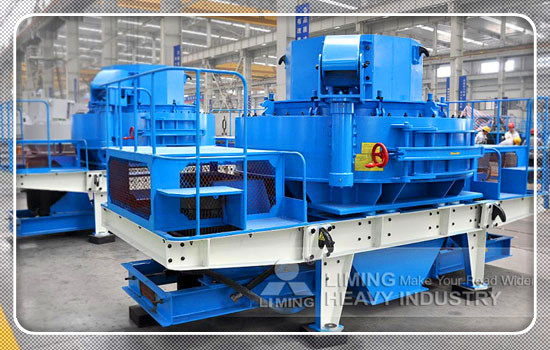

Material by GZD1100 * 1060 4200 vibrating feeder into PE750 coarse broken jaw crusher, crushing the material transfer to the regulating bin for secondary crushing, by belt conveyor after into HPT300 finely in multi-cylinder hydraulic cone broken, broken after the material after three ykn2675 new sieve screening, more than 40 mm material return bin to be broken again, 1 is less than 40 mm material into 2 adjustment bin, by belt conveyor after delivery to 5 x1145 sand, sand making machine for plastic

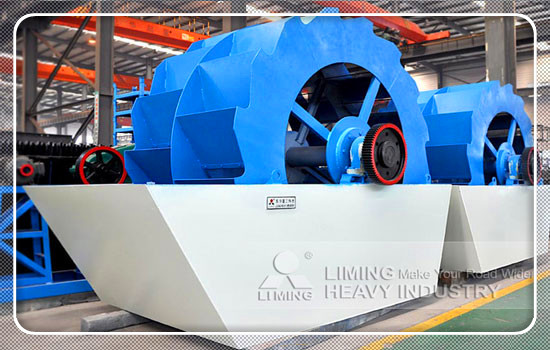

system is plastic material again by 3 yzs2460 sieve screening, high quality of gravel aggregate transfer directly to the finished product area, then greater than 5 mm return 2 bin stay again processing, the fine sand mechanism under 5 mm after sand washer to the finished product after cleaning.
