PE 250×1000 Jaw Crusher is mainly used in the industries of metallurgy, mining, chemical, cement, construction, refractory materials and ceramics, suitable to crush hard and soft ores with compressive strength less than 320 MPa. This machine can break materials into medium size and fine size.

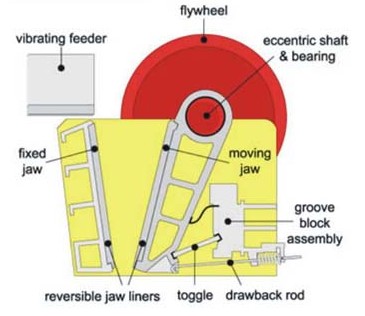

PE 250×1000 Jaw Crusher mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring.
PE 250×1000 Jaw Crusher Technical Data：
| Model | Max. Feeding Size (mm) | Adjustable Discharge opening (mm) | Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) | Weight (t) |
| PE 250 x1000 |
210 | 15-50 | 15-50 | 30 | 2790 x2670 x1380 |
6.5 |
| PEW 250 x1000 |
220 | 20-40 | 15-50 | 30 | 1400 x1850 x1310 |
5.6 |
PE Jaw crusher has other models, such as PE250×400, PE400×600, PE500×750, PE600×900, PE900×1200, PE1000×1200, etc. If you want to know more products, please contact us by customer severice !
Spodumene: According to the hard rock crushing process, the crushed product is generally 5-40mm, combined with different design requirements of customers, two-end or three-stage crushing, high-grade crushed products (above 4-5%) can be directly used in the metallurgical process to produce lithium carbonate Or lithium hydroxide, the particle size of the finished product is generally around 20-40mm; low-grade generally requires ball mill grinding and separation, and the particle size of the finished product is generally around 5-20mm;
