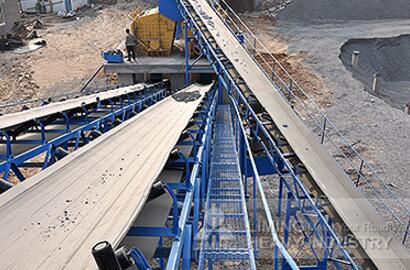

New B6X series belt conveyors

B6X series belt conveyors Introduction
B6X series Belt is our summary of conventional belt conveyor design, fabrication and installation experience and in close connection with market and customer needs and design a new generation of bulk material handling equipment. B6X series of belt conveyors available will increase our company in the low-end market competitiveness and expand our visibility in the bulk material handling equipment industry.
B6X series belt conveyors Scope
1, for the industry: mining, metallurgy, coal, transport, electricity, building materials, chemicals, light industry, food and machinery industries, conveying bulk density of 500 ~ 2500kg of various bulk materials / m3 of.
2, for the environment: temperature -20 ℃ ~ 40 ℃, relative humidity less than 80%, less than 1 kilometer altitude.
3, other special circumstances: For heat, cold, corrosion, explosion and fire-retardant requirements of the work environment, in the selection of this series of products, the need to use special rubber conveyor belt, and gear motor made explosion.

B6X series belt conveyors main feature
1. Inexpensive, stable performance.
To ensure product performance and quality of the premise, we fully optimize the various components B6X, both to save customers a lot of capital investment, but also to provide customers with stable performance products.
2. Compact structure, strong adaptability.
After extensive analysis of the previous field application of belt conveyor, a new generation will B6X more compact in structure, and with the convergence of the company’s other host devices more closely and more resilient.
3. Reduce the difficulty of high versatility.
In order to reduce the difficulty of production, production costs and difficulty of installation, to adapt to the rhythm of changes in the market and shorten the stocking cycle, B6X design emphasizes the high versatility and interchangeability.
4. Select the diverse, fully functional.
B6X design fully into account the diversity of human choice, in the case of the basic configuration to meet B6X normal operation, we have listed a lot of functionality matching items for customers to choose.

B6X series belt conveyors main structure
B6X series mainly by the belt conveyor drive roller, tension roller, tensioning device, the intermediate frame assembly line, headstock assembly, tailstock assembly line, guide trough, empty segment sweepers, head cleaning, composition head funnel, drives, leg series, maintenance walkways and escalators and other parts.

B6X series belt conveyors working principle
B6X series conveyor belt conveyor to make traction and bearing components, material handling equipment for continuous conveyor belt movement by carrying materials. Conveyor belt passed around the drive roller and tensioning roller forming Promise endless belt from the upper and lower conveyor rollers to limit deflection sag support belt, the belt tensioning device is running to provide the desired tension. Work drive means driving drum, drum drive by friction between the belt and the belt drive is running, the material is mounted on the belt conveyor and move together.

Technical Parameters:

Belt Width(mm) Belt Length (m) / Power (kW) Belt Speed (m/s) Capacity (t/h)
500 ≤12/3 12-20/4-5.5 20-30/5.5-7.5 1.3-1.6 45-100
650 ≤12/4 12-20/5.5 20-30/7.5-11 1.3-1.6 70-120
800 ≤10/4 10-15/5.5 15-25/7.5-15 1.3-1.6 120-180
1000 ≤10/5.5 10-20/7.5-11 20-25/11-22 1.3-2.0 160-250
1200 ≤10/7.5 10-20/11 20-25/15-30 1.3-2.0 200-400
