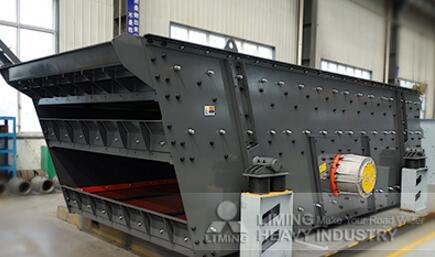

OUr company designed the new type S5X Series Vibrating Screen which widely applied for Construction aggregates, metal mining, coal mining, chemical engineering, material recycling and etc, it can meet for all demand of customers in mining industry.
Type: Necessary Equipment
Input Size: 0-200 mm
River Gravel, Granite, Basalt, Quartz, Iron ore, Diabase, Limestone, Coal Gangue etc. …
S5X Series Vibrating Screen Instructions as follows:
S5X series vibrating screen adopts latest most advanced design concept, applies for heavy, middle-heavy and fine screening task. It is the ideal equipment for after primary crushing and secondary crushing process, and final product screening.
S5X Series Vibrating Screen main features;
Enhanced Vibrating Strength
Since the screen adopts latest advanced design concept and manufacturing technique, it has enhanced vibrating strength G-force. It owns high throughout capacity, and more efficient screening capability.
SV Hyper-Energy Exciter
The SV Hyper-Energy Exciter is standard configuration for S5X series vibrating screen, and it has high efficiency and solid reliability. SV1-SV4 four models of exciter, to adjust the quantity of balancing weight, apply to all kinds of vibrating screen’s different excitation force requirement. The spare parts of screen are swappable, universal, standard, and modular.
Finite Element Analysis
The screen frame adopts finite element analysis, enabled the design intensity, weight balance and fatigue stress control in a safety margin.
Driving motor and exciter adopts flexible drive, makes the operation smooth and stable.
Extra-Long Service Life
The screen side frame is without any form of welding point, and the support seat adopts rubber spring. 400mm long feeding chute, 25mm thick rubber plate, and 5mm beam protection wrapper sheet, these component ensured the screen has extra-long service life
S5X Series Vibrating Screen working principle:
S5X vibrating screen is mainly composed of screen box, spring support groups, bearing, vibrators, transmission, motor, transmission bearings and other components.
S5X vibrating screen is a machine supported by springs , block eccentric vibration as the exciter source and generated excitation force by the rotation of the eccentric , So that the screen box circumferential consequent reciprocation. The material on the inclined sieve surface successive approximation in round bouncing tumbling motion, by repeatedly comparing with mesh, smaller than the mesh size of the material through the sieve, larger than the screen hole size of materials still on the screen mesh, thereby completing the screening process.
- S5X Series Vibrating Screen Specifications
|Model||Size W×L (mm)||NO.of decks||Incline(°)||Oper.Speed
|Stroke (mm)||Power (KW)||Capacity (t/h)||Mesh Size(mm)|
