4 1/4 CS cone crusher specifications

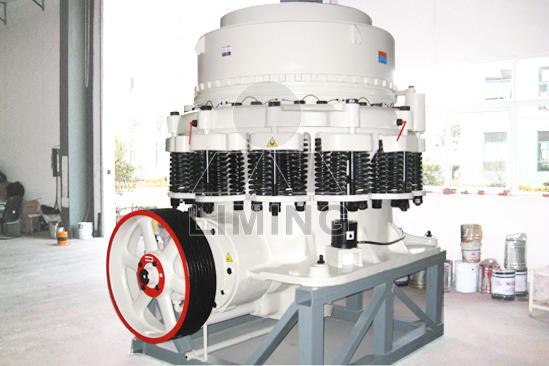

CS Cone crusher is a modern high-performance cone crusher, which is developed based on laminated crushing principle and conceptual design of “more crushing and less grinding” according to users’ demands.

4 1/4 CS cone crusher specifications

Benefit from CS Cone crusher

1. For higher productivity, better reliability and flexibility, long service life, and better final product quality, the CS cone crusher is absolutely your best choice.

2. If your aggregate or mining business demands the 24-hours running, high-reduction, big capacity application, you will find the CS type cone crusher optimized for your demands.

3. The innovations like the stable lubrication, excellent sealing feature, great abrasive material applied in key components and rugged construction effectively reduce the wear rate , extend the replacement period of the spare parts, evidently reduce the production cost in per ton hour material processed. All of these can help you to achieve the highest level of profitability.

specifications of CS cone crusher

Model Dia. mm (feet) Cavity Feed Opening Power (kw) Capacity (t/h)
Closing Side (mm) Open Side (mm)
CSB160 1295 (4 1/4′) Fine 109 137 185 109-181
Medium 188 210 132-253
Coarse 216 241 172-349
CSD160 1295 (4 1/4′) Fine 29 64 160 90-209
Medium 54 89 136-281
Coarse 70 105 190-336

We are professional crusher equipments manufacture, and we also have other cone crusher    model, such as 900 (3′), 1295 (4 1/4′), 1650 (5 1/2′), 2134 (7′), 914 (3′), 1676 (5 1/2′) etc. If you want to know more information, please contact us!
