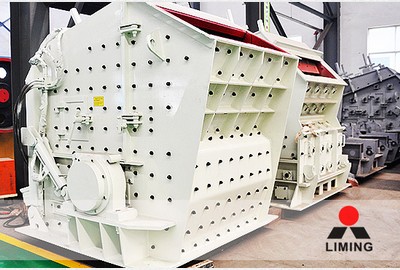

working principle of horizontal shaft impact crusher

Horizontal shaft impact crushers are suitable for high production primary, secondary, recycling applications including crushing aggregate, reinforced concrete and asphalt.

working principle of horizontal shaft impact crusher

The Impact Crusher Machine rotor revolves in fixed direction by means of driving action of triangle belt that connects with motor. Above rotor, there are sets of suspended impact plates. Material enters into the crushing chamber through the charging hole and feeding guide plate. The blow bars fixed on rotor strikes the feed material onto impact plate and then fall from it to mutually shock material blocks.

Therefore, material will be moved recurrently and repeatedly in the crushing chamber that is composed of rotor, impact plate/ anvils, hammers/ blow bars , by means of which intense shock phenomenon will act predominantly, and the material will be crushed along its natural crack and hence bulge. The gap between impact plate and hammer/blow bar can be adjusted according to practical requirement by adjusting the angle and distance of the impact anvils. Product output is easily controlled by varying the rotor speed, input feed rate and the grinding screen configuration.

Liming Heavy Industry (Shanghai) is one of the world’s leading manufacturers of horizontal shaft impact crusher. Based on decades of experience, our research and development work has become an integral part of our processing equipment. Customers all over the world benefit from our innovative power.
